Tower Crane Anti-Collision System Luffing Topkit Potain Liebherr Zoning

Highlight

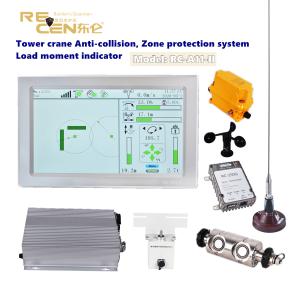

Tower crane Anti-collision, Zone protection system, Load moment indicator.

• The latest multifunctional safety system, integrated Load Moment Indicator, Anti-collision & Zone Protection System and remote online monitoring system.
• Visible 10 inch LCD touch screen display, show the most comprehensive working states of tower crane in operation.
• Friendly man-machine interface; automatically generated the coordinates of Tower crane & Obstacle, and Tower crane off-line protection (Optional)
• Strict high and low temperature test, anti-fouling and anti-corrosion.
• Higher integration greater precision data acquisition; Stable, convenient, long service life of system;
• Video manual, Easy for installation and calibration;

Anti-collision

• Real-time monitoring Tower crane working conditions prevent collision risk of each parts, ensure the stop within functional distance setting.
• Up to 30 Tower cranes management by radio transimmission.
• Automatically generated the coordinates of Tower crane.
• Tower crane off-line protection (Optional)

Zone protection

• Minimum 3 points from one obstacle to indicate a protection zone.
• Automatically generated the coordinates of obstacle
• Up to 10 zone for one tower crane surrounding
• Independent functional Zoning distance setting

Data record

Various data of Tower crane working status can be record constantly.

• Able to generate as EXCEL file and download to USB drive
• Online supervisor is available by add-on GRPS module.
• Real-time Record: Every 5 sec continuous recording
• Working Record: Record data per every lifting.
• Anti-collision Record: Record every control of prevent collision.
• Operating Record: Record the setting of Tower crane parameter.

Safe Load Moment

• Real-time monitoring Tower crane hook Loading condition to prevent Crane accident due to overload, ensure the stop within limit per Load chart.
• Always able to upload new Load Chart by USB drive.
• Multiple load charts can be upload at one time
• Easy programming of Load chart on software of computer.
